Exemple
| FBG | 06 | 01 | D | X | - | 60 | R | 90 | C3 | Z | - | 001 |
| ① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ | ⑧ | ⑨ | ⑩ | ⑪ |
① Series
FBG = Écrou simple à bride (rectifié)
FBR = Écrou simple à bride (laminé)
② Diamètre de la vis (mm)
06 = 6mm
③ Pas (mm)
01 = Pas standard, 1mm
01K = Pas non standard, 1mm
④ Type de retour de billes
D = Type déflecteur
S = Type déflecteur d'extrémité
T = Type tube de retour
C = Type bouchon d'extrémité
⑤ Option personnalisée (non standard)
⑥ Longueur de la section filetée (mm)
Le point décimal est indiqué par "_"
⑦ Sens du filetage
R = Droite
L = Gauche
LR = Droite et gauche
⑧ Longueur totale de la vis (mm)
Le point décimal est indiqué par "_"
⑨ Classe de précision
C3 = Norme JIS C3
C5 = Norme JIS C5
C7 = Norme JIS C7
C10 = Norme JIS C10
⑩ Jeu axial
Z = Précharge
T = ≤ 0.005 mm
S = ≤ 0.02 mm
N = ≤ 0.05 mm
⑪ Numéro de série personnalisé
In a mobile environment, you can move left and right to see the contents (tables).

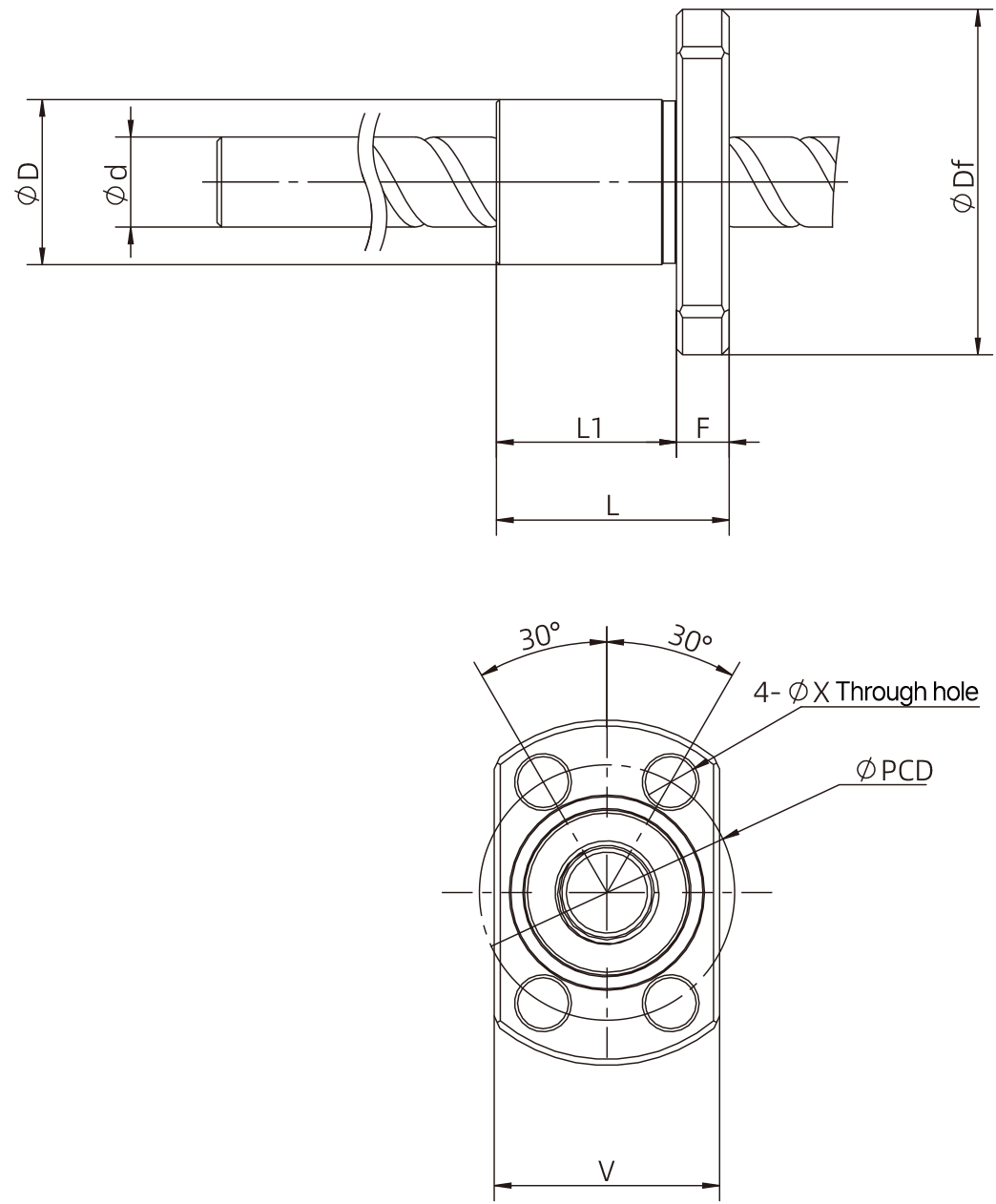

| Type d'écrou |
Diamètre de vis D (mm / pouce) |
Pas (mm / pouce) |
Diamètre d'écrou D (mm / pouce) |
Longueur totale de l'écrou L (mm / pouce) |
Longueur de montage L1 (mm / pouce) |
Diamètre de bride Df (mm / pouce) |
Épaisseur de bride F (mm / pouce) |
Diamètre de trou de montage X (mm / pouce) |
Diamètre du cercle de boulons (PCD) (mm / pouce) |
Largeur plate de l'écrou V (mm / pouce) |
Charge dynamique de base Ca (N) |
Charge statique de base Coa (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 4 (0.16) | 1 (0.04) | 9 (0.354) | 13 (0.511) | 10 (0.394) | 19 (0.748) | 3 (0.118) | 2.9 (0.114) | 14 (0.551) | 13 (0.512) | 560 | 790 |
| 2 | 4 (0.16) | 1 (0.04) | 10 (0.394) | 12 (0.472) | 9 (0.354) | 20 (0.787) | 3 (0.118) | 2.9 (0.114) | 15 (0.591) | 14 (0.551) | 560 | 790 |
| 2 | 4 (0.16) | 2 (0.08) | 11 (0.433) | 19 (0.748) | 15 (0.591) | 23 (0.906) | 4 (0.157) | 3.4 (0.134) | 17 (0.669) | 15 (0.591) | 420 | 570 |
| 2 | 6 (0.24) | 1 (0.04) | 11 (0.433) | 15.5 (0.610) | 12 (0.472) | 23 (0.906) | 3.5 (0.138) | 3.4 (0.134) | 17 (0.669) | 15 (0.591) | 680 | 1200 |
| 2 | 6 (0.24) | 1 (0.04) | 12 (0.472) | 15 (0.591) | 11.5 (0.453) | 24 (0.945) | 3.5 (0.138) | 3.4 (0.134) | 18 (0.709) | 16 (0.63) | 680 | 1200 |
| 2 | 6 (0.24) | 1 (0.04) | 12 (0.472) | 15 (0.591) | 11.5 (0.453) | 24.5 (0.965) | 3.5 (0.138) | 3.4 (0.134) | 20 (0.787) | 16 (0.63) | 680 | 1200 |
| 2 | 6 (0.24) | 2 (0.08) | 15 (0.591) | 17 (0.669) | 13 (0.512) | 29 (1.142) | 4 (0.157) | 3.4 (0.134) | 22 (0.866) | 19 (0.748) | 880 | 1500 |
| 2 | 6 (0.24) | 2 (0.08) | 12 (0.472) | 16 (0.63) | 12.5 (0.492) | 24 (0.945) | 3.5 (0.138) | 3.4 (0.134) | 18 (0.709) | 16 (0.63) | 880 | 1500 |
| 2 | 6 (0.24) | 2 (0.08) | 15 (0.591) | 17 (0.669) | 13 (0.512) | 29 (1.142) | 4 (0.157) | 3.4 (0.134) | 23 (0.906) | 19 (0.748) | 880 | 1500 |
| 2 | 6 (0.24) | 6 (0.24) | 12 (0.472) | 22 (0.866) | 18 (0.709) | 24 (0.945) | 4 (0.157) | 3.4 (0.134) | 18 (0.709) | 16 (0.63) | 870 | 1450 |
| 2 | 8 (0.31) | 1 (0.04) | 13 (0.511) | 16 (0.63) | 12 (0.472) | 26 (1.024) | 4 (0.157) | 3.4 (0.134) | 20 (0.787) | 17 (0.669) | 780 | 1650 |
| 2 | 8 (0.31) | 1 (0.04) | 14 (0.551) | 16 (0.63) | 12 (0.472) | 27 (1.063) | 4 (0.157) | 3.4 (0.134) | 21 (0.827) | 18 (0.709) | 780 | 1650 |
| 2 | 8 (0.31) | 2 (0.08) | 15 (0.591) | 18 (0.709) | 14 (0.551) | 28 (1.102) | 4 (0.157) | 3.4 (0.134) | 22 (0.866) | 19 (0.748) | 1300 | 2300 |
| 2 | 8 (0.31) | 2 (0.08) | 14 (0.551) | 16 (0.63) | 12 (0.472) | 27 (1.063) | 4 (0.157) | 3.4 (0.134) | 21 (0.827) | 18 (0.709) | 1300 | 2300 |
| 2 | 8 (0.31) | 5 (0.2) | 18 (0.709) | 28 (1.102) | 24 (0.945) | 31 (1.22) | 4 (0.157) | 3.4 (0.134) | 25 (0.984) | 20 (0.787) | 1850 | 3000 |
| 2 | 10 (0.394) | 2 (0.08) | 17 (0.669) | 19 (0.748) | 14 (0.551) | 33 (1.299) | 5 (0.197) | 4.5 (0.177) | 26 (1.024) | 22 (0.866) | 1450 | 3000 |
| 2 | 10 (0.394) | 2 (0.08) | 18 (0.709) | 28 (1.102) | 23 (0.906) | 34.5 (1.358) | 5 (0.197) | 4.5 (0.177) | 27 (1.063) | 22 (0.866) | 1450 | 3000 |
| 2 | 12 (0.47) | 2 (0.08) | 19 (0.748) | 19 (0.748) | 14 (0.551) | 36 (1.417) | 5 (0.197) | 4.5 (0.177) | 28 (1.102) | 23 (0.906) | 1600 | 3700 |
| 2 | 12 (0.47) | 2 (0.08) | 20 (0.787) | 28 (1.102) | 23 (0.906) | 37 (1.457) | 5 (0.197) | 4.5 (0.177) | 29 (1.142) | 24 (0.945) | 1600 | 3700 |
